ALINX Pango Logos PGL50G P50G FPGA SoM system-on-module

Product Description

The P50G System-on-Module (SoM) combines high-performance Pango Logos-series PGL50GFBG484 device with fast DDR3 SDRAM, dual parallel Quad-SPI Flash and thus forms a complete and powerful embedded processing system. This module is suitable for high-speed applications due to the high number of transceivers.

Applications

● Communication
● Industrial control

Key Features

● 256 MByte (16-bit) DDR3 SDRAM
● 8 MB QSPI Flash
● USB TO UART
● LED (1 x LED) + KEY(1 x RESET)
● User I/Os
◆ 172 FPGA I/Os (3.3V)● Work temperature range of -40°C to 85°C
● 12V single supply
● Dimensions: 60 x 60 mm form factor

Item ID	102398
Condition	New
Legacy item ID
Model	P50G
Manufacturer	Alinx Electronic Limited
Manufacturing country	China
Content	1 piece
Weight	1000 g
Net weight	1000 g
Customs tariff number	8471 8000 00 0

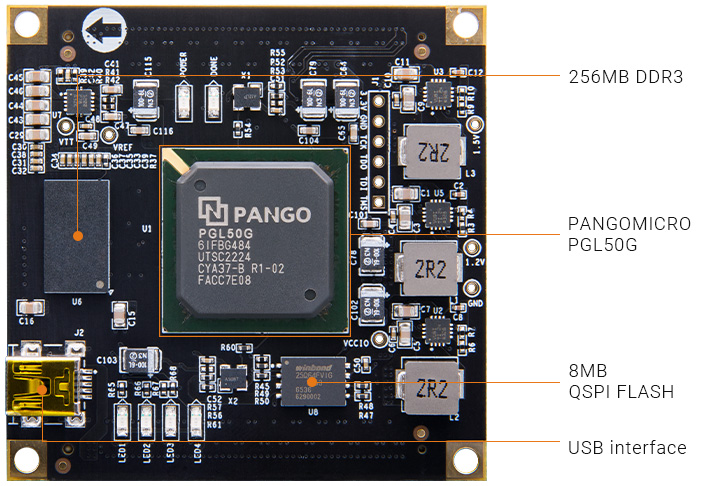

Module Features

Featuring the Pango Logos PGL50G -6IFBG484

* We have Logos development boards AVP50G that uses this Logos module, to get started with development straight out of the box.

Please check the Relevant Products at the bottom of the page and click to learn more details.

What's Inside the Box

ALINX Pango Logos PGL50G System-on-Module/SoM

SoM	1

Product Matrix

Product Model	Preferred Model	FPGA Devices	DDR3	QSPI Flash	Temp. Range	USD Price
P12	√	PGL12G -6CFBG256	32MB	8MB	0°C~ 70°C	39
P22	√	PGL22G -6CMBG324	256MB	16MB	0°C~ 70°C	43
P25G	√	PGL25G-6IMBG324	256MB	16MB	-40°C-85°C	45
P50G	√	PGL50G -6IFBG484	256MB	16MB	-40°C-85°C	75
P50	√	PGL50H -6IFBG484	256MB	16MB	-40°C-85°C	119

1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.

We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.

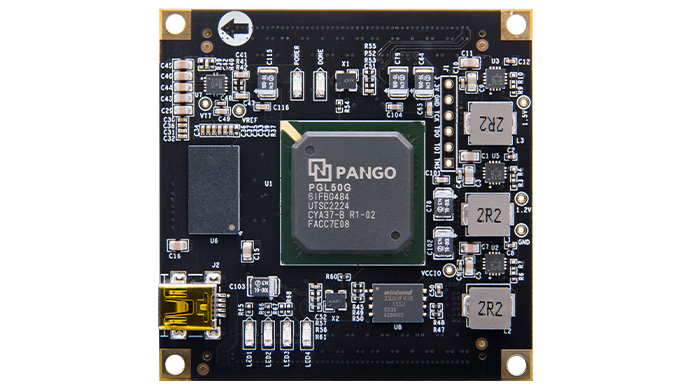

P50G SOM with Pango Logos PGL50G
